Hi dear steemians and hello dear friends. This time I am back again with some sciece based content, to be more specific content about fusion. If this is what you want, upvote and follow. I will certainly appreciate it.
Today, the post is again not a part of the Guide to Fusion because this will be more of an overview type of post, but you are more than welcome to visit the linked post, as it serves as a table of content to the previous fusion related content. In this post we will answer the question: How exactly do various types of experimental setups contribute to our knowledge of future ITER operation?
Why do we need other experiments?
For this question to be answered we must pose another question. Other fusion tokamaks which are able to ignite a fusion plasma already exist and are strewn all across the world.
Joint European Torus (JET) situated in the UK, JT-60 in Japan, so-called ASDEX Upgrade which is operating near Munchen, Germany. You can see ASDEX Upgrade in the right picture. It is a much smaller machine than ITER will be. But why does that matter? It matters because the power output of a tokamak type reactor strongly depends on the plasma volume size. This means that smaller tokamaks are simply not physically able to produce the amount of energy that is relevant considering the needs for power output in a commercial reactor, and larger tokamaks are needed. So now we can finally answer the question what is the role of the smaller scale experiments.
Well the answer is quite simple. The plasma-wall interaction which is the most important scientific problem in future tokamaks is strongly dependent on power output. For instance, the heat flux that is transfered from the plasma to the divertor of the tokamak is in close relation with the power generated in the plasma. This means that without building ITER we have no way of having any clue what will happen in it. So the cause seems lost... What can we possibly do? Well here the smaller experiments come into play. They probe the underlying physics at smaller experiments, which can than be extrapolated to larger machines.
So lets look at two of the most prominent experiment types that are used for extrapolation.
I have already mentioned some tokamaks that exist currently. There are many more I have not mentioned yet. All of the tokamak have their own strengths and weaknesses. For instance. JET situated in the UK is the largest tokamak to have ever been built. This means it can come the closest to the future conditions which will be present in ITER in the plasma center. On the other hand the plasma-facing components and the structure of the divertor is constructed differently than in ITER, which means that the plasma-material interactions are not as relevant.
Another great example is the so-called WEST which can be seen in the picture above. This tokamak is constructed from exactly the same plasma-facing components than ITER. Also it produces relevant magnetic fields to those of ITER. All of this means that it can produce very high heat fluxes on specific targets in the diveror, by focusing the plasma on one spot. This means it is very relevant in the whole plasma-material interaction story and it complements JET very well.
Other tokamaks of course exist with their own strengths but I will not mention them here.
I will only briefly mention the other possible experimental setup - so-called plasma guns. I intend to write about them in more detail sometime in the future. I will only mention that they are perfect experiments where it comes to investigating the plasma-material interaction, as the plasma parameters are quite easily changed. Also the fluxes of ions and heat can be extremely relevant for ITER. They can also quite easily change the conditions of the wall, by changing the samples, heating the samples, tilting the surface and so on.
The only real disadvantage is that the plasma is sometimes quite unreliable and can be contaminated. Which can be a problem or not, depending on your experiment.

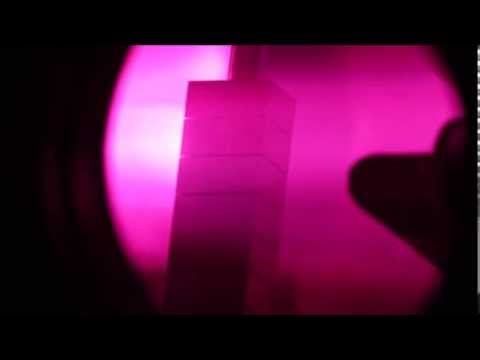

Bellow I show a video made by a plasma gun set-up called Magnum-PSI, where a ITER relevant mono-block was exposed to unstable plasmas which mimic the ELM conditions, which I presented in my stellarator post
As we said the smaller experiments can probe the underlying physics that will come into play in the big ITER machine. This seems completely logical. You might think what is the problem, even. By using data gathered from small scale experiment physics you should be perfectly able to simply extrapolate to the bigger machine. Physics is physics, right? Well, not necessarily. It might be that at the extreme conditions with massive heat and particle fluxes some unlinear effects might come into play, which would make our extrapolation from current experiments completely pointless. But this is the best we can currently do. We simply must wait for ITER to be constructed and then see. This is the depressing physics reality.
